LINEAR LOW DENSITY POLYETHYLENE GEOMEMBRANE LINERS



FREE SHIPPING TO THE CONTINENTAL US (EXCLUDING ALASKA & HAWAII) FOR ALL SUPPORTED AND NON SUPPORTED LLDPE LINERS, WEIGHING 10,000 LBS OR GREATER!

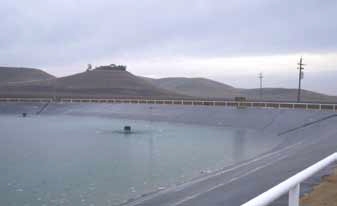

Unsupported LLDPE

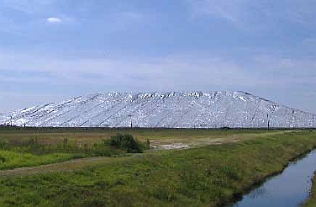

Landfill Caps
• Canal Linings
• Brine Ponds
• Oilfield Pitliners
• Mine Tailing Ponds
• Decorative Ponds
• Decorative Ponds
• Oilfield Pitliners
• Ditch Linings
• Fire Ponds
Farm Ponds
• Irrigation Reservoirs
• Shrimp & Fish Ponds
• Leachate Collection Ponds
• Waste Water Ponds
• Secondary Containment
• Brine Ponds
• Farm Ponds
• Canal Linings
• Shrimp & Fish Ponds

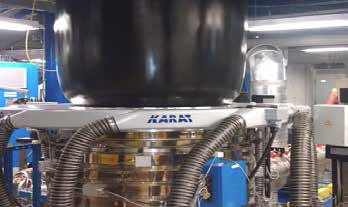

Geo-Dakota Series

GEO-DAKOTA B30BW is a geomembrane consisting of a select blend of linear low density polyethylene (LLDPE) containing carbon black and ultraviolet inhibitors to ensure protection against harmful UV degradation. High Performance LLDPE provides superior elongation impact strength and excellent tear resistance. GEO-DAKOTA B30BW does not contain plasticizers or additives that can leach to the surface causing premature aging.

Data Sheet (PDF) - GEO-DAKOTA -- B30BW - 3 Layer Co-Extruded










GeoFlex 'H' Series

Co-extruded (Mono-Layer)

GeoFlex™ GEOH20B, GEOH30B and GEOH40B are coextruded geomembranes consisting of outer layers of virgin linear-low density polyethylene and an inner core of virgin and select reprocessed resin, designed to provide a high quality yet economical geomembrane. Available in 20, 30, & 40 mils, and in widths up to 200' wide or up to 90,000 square-foot panels.

Data Sheet (PDF) - GEOH20B, GEOH30B, and GEOH40B

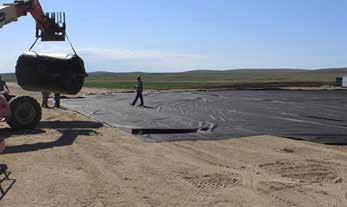

GeoFlex 'HD' Series

GeoFlex HD-Series HD40 and HD60 are three layer coextruded geomembranes consisting of high-density polyethylene outer layers with an inner core of flexible and conforming linear-low-density polyethylene. The outer layers are formulated to provide an outstanding balance of environmental stress crack resistance and toughness, for excellent resistance to aqueous chemicals and solvents. GeoFlex is stabilized with carbon black, antioxidants and UV stabilizers for long-term exposed applications.

Data Sheet (PDF) - GEOHD40, GEOHD60


GeoFlex 'HT' Series

GeoFlex™ HT30 & HT40 are co-extruded textured linear low density polyethylene (LLDPE) geomembranes containing carbon black and ultraviolet inhibitors to ensure protection against harmful UV degradation. HT Series one-side textured LLDPE provides increased friction, elongation and flexibility. Available in black and black/gray color options with the gray side providing a cooler surface against contrasting colors and a vital function for ease of damage detection during installation.

Data Sheet (PDF) - GeoFlex HT30 and HT40


GeoFlex Ultra Black

GeoCHEM GeoFlex™ Ultra GEOHU20B, GEOHU30B and GEOHU40B are very flexible linear-low density polyethylene geomembranes. Virgin grade high-strength LLDPE provides exceptional elongation, tensile and impact strength. These are very flexible materials that will conform to almost any surface. GeoCHEM GeoFlex™ Ultra products are available in 20 mil up to 40 mil thicknesses and in widths up to 200' or up to 50,000 square-foot panels (20 mil).

Data Sheet (PDF) - GEOHU20B, GEOHU30B, and GEOHU40B



GeoFlex Pro Series

GeoFlex™ Pro HP-Series HP30 and HP40 are co-extruded linear-low density polyethylene geomembranes developed for applications requiring enhanced flexibility along with a combination of high strength and impact resistance. These elements are critical for the pliability necessary in reliable, above ground tank lining systems, as well as earthen pits and ponds.

Data Sheet (PDF) - GeoFlex HP30 and HP40


GeoFlex™ VF30B

GeoFlex™ VF30B membrane consists of prime very-low density black polyethylene (VLDPE) to provide extremely high elongation, tear resistance, and bursting strength. GeoFlex™ VF30B will remain flexible and conforming for challenging angles and terrains without stress cracking problems as often seen with high-density membranes. A minimum fine carbon black content of 2.0% provides excellent protection from UV rays and harsh weather conditions. Manufactured from virgin resins, GeoFlex™ VF30B does not contain plasticizers, which can migrate to the surface, causing premature aging.

Data Sheet (PDF) - GeoFlex VF30B


GeoFlex™ V30B

GeoFlex V30B is a co-extruded membrane consisting of prime very-low-density black polyethylene (VLDPE) to provide extremely high elongation, tear resistance, and bursting strength. GeoFlex V30B will remain flexible and conforming for challenging angles and terrains without stress cracking problems often seen with high density membranes. A minimum fine carbon black content of 2.0% provides excellent protection from UV rays and harsh weather conditions. Manufactured from virgin resins, GeoFlex V30B does not contain plasticizers which can migrate to the surface, causing premature aging and degradation.

Data Sheet (PDF) - GeoFlex V30B


GeoCHEM 'E' Series

Extruded (Multi-Layer)

GeoCHEM E-Series is a multi-layer, coextruded, metallocene and linear low density polyethylene geomembrane with an anti-skid surface on both sides. Fine N110 carbon black and high performance stabilizers provide long-term protection from thermal oxidation and ultraviolet degradation. A combination of premium linear polyethylenes provide exceptional toughness, multi-axial elongation and impact resistance. GeoCHEM E-Series is used in lining and cover applications requiring good outdoor weatherability, toughness and puncture resistance.

Data Sheet (PDF) - E Series -- E15DBS (15 Mil)
Data Sheet (PDF) - E Series -- E30BS (30 Mil)


Geo Barrier 'E' Series

High Performance Geomembrane Gas Barrier & Enhanced Grip Surface

Geo Barrier™ EB25BS is a seven layer co-extruded geomembrane consisting of a very flexible, linear low-density polyethylene (LLDPE) and an inner core of chemically resistant EVOH, designed specifically as a barrier. High strength LLDPE provides exceptional tear and impact resistance. A robust stabilization package that exceeds the industry standard provides long-term protection from thermal oxidation and ultraviolet degradation in exposed applications. A lightly textured surface provides enhanced grip for ease of installation and worker safety.

Data Sheet (PDF) - EB25BS Gas Barrier -- 25 Mil with Anti-Skid Surface (Black)


Geo Barrier™ 'X' Series

High Performance HDPE Geomembrane Gas Barrier

Geo Barrier™ X-Series X40BAL and X60BAL are a 7 layer co-extruded geomembranes consisting of a durable high-density polyethylene (HDPE) with an inner core of highly effective barrier resin, designed specifically as a barrier against methane, radon and VOCs. High strength HDPE provides excellent chemical resistance and durability. A robust stabilization package that exceeds the industry standard; provides long-term protection from thermal oxidation and ultraviolet degradation in exposed applications. (Available in truckload quantities of 200,000 sq/ft)

Data Sheets (PDF) - Geo Barrier X Series -- X40BAL 40 Mil & X60BAL 60 Mil Gas Barrier
Data Sheets (PDF) - Geo Barrier XB Series -- XB60BCL 60 Mil Gas Barrier


Geo Barrier 'Y' Series

High Performance LLDPE Geomembrane Gas Barrier

Geo Barrier™ Y-Series Y30BAC and Y40BAC are seven layer co-extruded geomembranes consisting of very flexible, linear low-density polyethylene (LLDPE) with an inner core of chemically resistant barrier resin, designed specifically as a barrier against radon, methane and VOCs. High strength LLDPE provides exceptional tear and impact resistance. A robust stabilization package that exceeds the industry standard;
provides long-term protection from thermal oxidation and ultraviolet degradation in exposed applications.

Data Sheet (PDF) - Y30BAC & Y40BAC Gas Barrier -- 30 & 40 Mil


Geo Vapor® Series

High Performance Underslab Vapor Barrier

Geo Vapor® Series consist of high performance underslab vapor barriers designed to retard moisture migration through concrete slabs-ongrade. This product is made from state-of-the-art polyethylene resins that provide superior physical and performance properties that far exceed ASTM E-1745 (Plastic Water Vapor Retarders Used in Contact with Soil or Granular Fill Under Concrete Slabs) Class A, B and C requirements. High tensile strength, unequaled puncture resistance, ultra low moisture vapor permeability as well as resistance to decay make Geo Vapor® one of the most effective underslab vapor barriers on the market today! Available in 6, 10 and 15 mil thicknesses to best meet required performance specifications.

Data Sheet (PDF) - Geo® Vapor --  GV6, GV10, & GV15
Geo Vapor®Installation Guide

Data Sheet (PDF)
-
Geo Vapor®G™ --  GVG15 - 15 Mil (Green)
Geo Vapor® G (Green) Installation Guide

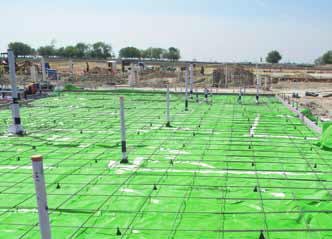

Geo Vapor®Plus™ Series

Geo Vapor® Plus™ is a seven-layer co-extruded barrier made from state-of-the-art polyethylene and EVOH resins to provide unmatched impact strength as well as superior resistance to gas and moisture transmission. Geo Vapor® Plus™ 20 is a highly resilient underslab / vertical wall barrier designed to restrict naturally occurring gases such as radon and/or methane from migrating through the ground and concrete slab. Geo Vapor® Plus™ 20 is more than 100 times less permeable than typical high-performance polyethylene vapor retarders against Methane, Radon and other harmful VOCs.

Data Sheet (PDF) - Geo Vapor®Plus™ --  GVP15 - 15 Mil
Data Sheet (PDF) - Geo Vapor®Plus™ --  GVP20 - 20 Mil
GeoVapor® Plus Installation Guide

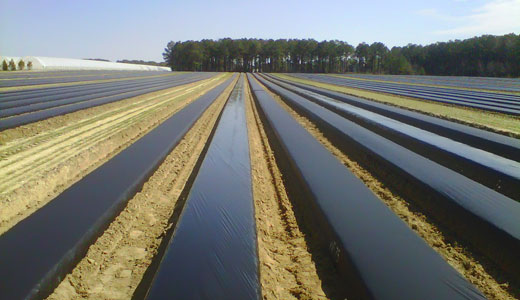

Geo Safe™

TIF Fumigation Barrier - Broadcast Film

Geo Safe™ is a seven-layer co-extruded barrier film made from very flexible lineal low density polyethylene and an inner core of gas impermeable EVOH. High strength LLDPE provides exceptional tear and impact strengths to allow for ease of installation and long term performance. Utilizing Geo Safe™ (TIF) can maximize production acres significantly impacting your overall bottom line while reducing fumigant rates up to 50% without loss of efficacy or yield.

Data Sheet (PDF) - Geo Safe™ --  1 Mil Barrier Film
Data Sheet (PDF) - Geo Safe™ TUV --  1 Mil Barrier Film with Thermal and UV Stabilizers
Data Sheet (PDF) - Geo Safe™ --  Brochure


Reinforced LLDPE
• Waste Lagoon Liners
• Floating Covers
• Tunnel Liners
• Remediation Liners
• Earthen Liners
• Interim Landfill Covers
• Remediation Covers
• Landfill Caps
• Erosion Control Covers
• Radon Barrier
• Methane Barrier
• Fish Hatcheries
• Canal Liners
• Disposal Pit Liners
• Water Containment Ponds
• Heap Leach Liner

Geo-Skrim 'J' Series

Tri-Directional Scrim Reinforced Polyethylene

Geo-Skrim J Series geomembranes consist of linear-low density polyethylene reinforced with a tri-directional scrim encapsulated high strength polyester reinforcement. In addition to excellent dimensional stability, the Tri-directional reinforcement provides exceptional tear and tensile strength. Geo-Skrim J-Series membranes are formulated with thermal and UV stabilizers to assure a long service life. Custom colors are available based on minimum volume requirements.

Poultry ceilings, Silage Bunker covers, Grain covers, Divider curtains, Silo liners, Industrial covers / liners

Data Sheet (PDF) - Reinforced J Series -- 6 Mil - J6WHD, J6WB
Data Sheet (PDF) - Reinforced J Series -- 25 & 30 Mil - J25DT1, J30DT1



Geo-Skrim 'K' Series

Cross-Directional Scrim Reinforced Polyethylene (Smooth or Textured)

Geo-Skrim K Series geomembranes consist of linear low density polyethylene reinforced with dense cross-directional scrim reinforcement. In addition to excellent dimensional stability the K-Series reinforcement provides unmatched tear and puncture strength. Geo-Skrim K-Series membranes are formulated with thermal and UV stabilizers to assure a long service life. Geo-Skrim K Series are available with a smooth or textured surface. Textured K-Series combines both the exceptional performance characteristics of smooth K-Series with our exclusive GeoGrip™ surface texture consisting of durable random spikes and bidirectional bars for uniform stabilization and support. Large diameter mill rolls are available to assure an efficient seaming process. Factory welded panels are accordion folded and tightly rolled on a heavy-duty core for ease of handling and time saving installation. Geo-Skrim K-Series is certified under the NSF/ANSI Standard 61, Drinking Water System Components – Health Effects.

Data Sheet (PDF) - Reinforced K Series -- K30B, K36B, K45B
Data Sheet (PDF) - Reinforced K Series -- Textured K36BT, K40BT, K45BT



Geo-Skrim 'KQ' Series

Cross-Directional Scrim Reinforced Polypropylene

Geo-Skrim KQ Series geomembranes consist of reinforced flexible polypropylene. Exceptional physical properties are achieved by incorporating high levels of ethylene propylene rubber into polypropylene with dense scrim reinforcement for excellent dimensional stability and puncture resistance. In addition the heavy duty cross-directional reinforcement provides unmatched tear and tensile strengths. Geo-Skrim KQ Series polypropylene membranes do not contain plasticizers that can leach out and hinder long-term flexibility and performance. Geo-Skrim KQ Series provides outstanding resistance to environmental stress cracking even in elevated temperatures and chemical environments. Geo-Skrim KQ Series is certified under the NSF/ANSI Standard 61, Drinking Water System Components - Health Effects.

Data Sheet (PDF) - Reinforced KQ Series -- KQ36B and KQ45B



Geo-Skrim 'N' Series

GEO-SKRIM® N-Series consists of flexible geomembranes, reinforced with a closely knit 9x9 weft-inserted polyester scrim fully encapsulated between two layers of highly UV stabilized lineal-low-density polyethylene. Exceptional toughness, high tensile and puncture strength is achieved with the combination of premium high strength polyethylene and dense scrim reinforcement. A highly stabilized formulation consisting of antioxidants, UV stabilizers, and carbon black provide excellent protection for long-term exposed applications. GEO-SKRIM® N-Series is manufactured from a chemically resistant LLDPE resin to provide excellent dimensional stability and cold flex crack performance. GEO-SKRIM® N-Series geomembranes are produced in the color black as standard and are available in other custom manufactured colors with minimum order quantity requirements.

GEO-SKRIM® N-Series meets the physical property values as stated in the Geosynthetics Research Institute; GRI-GM25 Standard Specification, and is certified under the NSP/ANSI Standard 61, Drinking Water System Components – Health Effects.

Data Sheet (PDF) - Reinforced 'N' Series -- 30 Mil - N30B
Data Sheet (PDF) - Reinforced 'N' Series -- 45 Mil - N45B
Data Sheet (PDF) - Reinforced 'N' Series -- 45 Mil - N45BT1 - Textured One Side
Data Sheet (PDF) - Reinforced 'N' Series -- 45 Mil - N45BT2 - Textured Two Sides

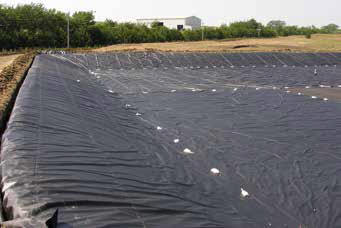

Geo-Skrim 'NQ' Series

GEO♦SKRIM NQ36B is a highly flexible geomembrane, reinforced with a closely knit 9x9 weft inserted polyester scrim fully encapsulated between two layers of highly UV stabilized polypropylene. Exceptional flexibility is achieved by incorporating high levels of ethylene propylene rubber into polypropylene along with a dense scrim reinforcement, resulting in excellent dimensional stability and physical properties.

GEO♦SKRIM NQ-Series polypropylene membranes do not contain plasticizers that can leach out and hinder long-term flexibility and performance. GEO♦SKRIM NQ36B provides outstanding resistance to environmental stress cracking even in elevated temperatures and chemical environments. GEO♦SKRIM NQ-Series geomembranes are produced in the color black as standard, and are available in other custom manufactured colors with minimum order quantity requirements.

Data Sheet (PDF) - Reinforced 'NQ' Series -- 36 Mil - NQ36B
Data Sheet (PDF) - Reinforced 'NQ' Series -- 45 Mil - NQ45B


Geo-Skrim 'R' Series

Diagonal Scrim Reinforced Polyethylene

Geo-Skrim R Series products are manufactured using outer layers of high-strength polyethylene and bonding layer(s) of molten polyethylene. Diagonal polyester scrim reinforcement is placed between these plies to greatly enhance tear resistance and increase service life. This results in a strong, light-weight construction that is excellent for use as a cover or liner in many conditions. The Geo-Skrim Series is manufactured in panels up to 90,000 square feet. Thickness ranges from 6 mil up to 24 mil.

Underslab Vapor Retarders, Modular Tank liners, Daily landfill covers, Remediation liners, Earthen liners, Interim landfill caps, Remediation covers, Erosion control covers, Construction Enclosures, Asbestos Abatements, Fumigation Covers, Temporary Walls, Curtains, Job Site Coverings

Data Sheet (PDF) - Reinforced R Series -- 6 Mil - 6BB, 6WB, 6WW
Data Sheet (PDF) - Reinforced R Series -- Clear - 6 & 10 Mil GS 2-10HUV

Data Sheet (PDF) - Reinforced R Series -- Fire Retardant - 6 & 10 Mil GS 2-10FR
Data Sheet (PDF) - Reinforced R Series -- 8 & 12 Mil - 8BB, 8WB, 12BV & 12WB
Data Sheet (PDF) - Reinforced R Series -- 8 & 12 Mil - 8BV & 12BV
Data Sheet (PDF) - Reinforced R Series -- 20 Mil - R20BDV

Data Sheet (PDF) - Reinforced R Series -- 20 Mil - R20WW
Data Sheet (PDF) - Reinforced R Series -- 24 Mil - R24BV


Geo-Skrim 'RB' Series

GEO-SKRIM® RB20BBV incorporates high-strength reinforcement with the latest in barrier technology designed to provide an effective barrier to odor and gases. RB20BBV is manufactured with an outer ply consisting of seven-layers including an integrated core of a high performance polymer with enhanced barrier properties. This limits migration of volatile organic compounds including methane, halogenated hydrocarbons, aromatic hydrocarbons and odors. The barrier layer is more effective than standard polyethylene in gas and odor control, while providing the same great strength and toughness expected from patented GEO-SKRIM® fiber reinforced membranes. Diagonal scrim reinforcement is placed between these plies to provide optimal tear resistance and increased service life. GEO-SKRIM® RB20BBV is manufactured in large prefabricated panels to provide maximum coverage and reduce site installation time and cost (fabricated panels available up to 8,000 lbs).

Data Sheet (PDF) - Reinforced 'RB' Series Gas Barrier -- 20 Mil - RB20BBV




Geo Vex® GV12WB - 12 Mil Woven, Coated Polyethylene

Geo Vex® GV12WB is a reinforced plastic sheeting manufactured by weaving high-density polyethylene ribbons and coating them with a low-density polyethylene. This special weaving process produces a highly tear-resistant film which allows the ribbons to shift and “bunch up” in response to a tearing force. Geo Vex® GV12WB is coated on one side with black low-density polyethylene and white low-density polyethylene on the other side. The black side maximizes longevity while the white side greatly reduces heat buildup and condensation.

Data Sheet (PDF) - Reinforced Geo Vex GV12WB -- 12 Mil



GeoProtect™ Woven, Coated, Reinforced Polyethylene

GeoProtect™ W12BW, W14BW, W16BW are woven coated fabrics made of oriented high density polyethylene ribbons and outer layers of a resilient UV stabilized coating. GeoProtect™ reinforced polyethylene materials have an incredibly high strength-to-weight ratio, resulting in superior tear resistance and ease of installation.

Data Sheet (PDF) - GeoProtect -- 12, 14 & 16 Mil
Data Sheet (PDF) - GeoProtect -- 16, 20 & 30 Mil

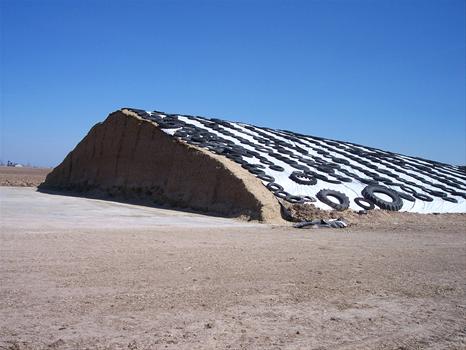

Geo Fresh™ GF RB7WB Silage Cover - Reinforced Oxygen Barrier

Geo Fresh™ GF RB7WB is a ten-layer reinforced extrusion laminate. The outer layers are produced with high-strength polyethylene resins along with EVOH barrier resin extruded into one of the layers to provide an ultra-low oxygen transmission rate. The outer layers include carbon black (black side) and UV stabilizers (white side) to increase outdoor longevity. Geo Fresh™ GF RB7WB is reinforced with a 1000 denier scrim laid in a diagonal pattern spaced 3/8˝ apart with an additional machine direction scrim every 9˝ across the width.

Data Sheet (PDF) - Reinforced Geo Fresh™ -- 7 Mil Oxygen Barrier




Geo FeedPro G™ GF A5WB1 Silage Cover

Geo FeedPro G™ Silage Cover is a white/black tri-layer film manufactured with premium grade outer layers and select recycled resins in the core. Geo FeedPro G™ contains thermal and U.V. stabilizers for longevity in outdoor exposure. The outer white layer provides excellent protection from ultraviolet rays and reflects sunlight to minimize heat build-up and help prevent spoilage. The reverse side consists of a black opaque layer of puncture resistant polyethylene to prevent light transmission from reaching the pile. Geo FeedPro G™ is readily available in standard as well as all the extra hard-to-find wide-width sizes. Geo FeedPro G™ is offered as an economical alternative to virgin resin films, while directly contributing to our environmental mission of minimizing landfill consumption through recycling.

Data Sheet (PDF) - Geo FeedPro G™ GF A5WB1 -- 5 Mil Silage Cover

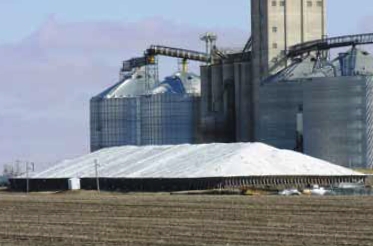

Geo Grain™ Grain Cover

Diagonal Scrim Reinforced Polyethylene

Geo Grain™ Grain Covers are produced with our patented Geo-Skrim string reinforced material. Geo Grain™ has become the cover of choice among many of the storage facilities throughout the grain regions of the United States due to its superior features and wide range of large custom sizes. Geo Grain™ covers are manufactured using layers of high-strength polyethylene and bonding layer (s) of molten polyethylene. Diagonal polyester scrim reinforcement is placed between these plies to greatly enhance tear resistance and increase service life. Geo Grain™ Grain Covers are available in thickness ranges from 6 mil up to 12 mil.

Data Sheet (PDF) - Geo Grain Grain Cover -- GGR6WBK, GGR8WBK & GGR12WBK (6, 8, & 12 Mil)


Geo GrainMax™ Series

The GeoGrainMax™ Series includes economical, reinforced films designed for agricultural applications requiring puncture resistance and high tear strengths. A heavy-duty scrim reinforcement, lamina ted between two layers of high strength polyethylene film, results in a material that resists punctures and immediately stops tears. GeoGrainMax™ Storage Covers are produced with our patented GEOSKRIM® string reinforced material.

Data Sheet (PDF) - Geo GrainMax, GeoGrainMax  Pro, GeoGrainMax Ultra


Woven - Coated LLDPE
• Flat Work
• Pavement
• Roads
• Columns
• Bridges

• Tunnels
• Building Construction
• Decorative Concrete
• Stained Concrete
Geokure™ Wet Concrete Curing Blanket

Geokure™ Wet Curing Blanket consists of a highly absorbent synthetic needle punched fabric coated with a white reflective film. Unlike burlap, it will not rot or mildew. Geokure™ Blankets are lightweight and disposable making them an economical choice in concrete curing and yet are versatile and strong enough to be reused when cared for properly. For Hot Weather Concrete Curing.

Data Sheet (PDF) - Geokure Wet Curing Blanket -- GEOKURE80 (21 Mil)



LLDPE INSTALLATION GUIDE (For LLDPE 20, 30, and 40 mil unreinforced, and GeoSkrim J30, J36, and J45 reinforced,

INSTALLATION GUIDE (All other LLDPE liners)

INSTALLATION GUIDELINES for VAPOR BARRIERS:
Under Slab Vapor Barrier Installation Guide
Geo Vapor Installation Guide
Geo Vapor Plus Installation Guide
Geo Vapor Green Installation Guide

GEOMEMBRANE ACCESSORIES, TAPES, GRABBERS, ETC.  (PDF)

Contact Us For Technical Assistance, Additional Product Information, Bid Proposals, Price Quotations And/Or To Order Your Geomembrane Containment and Pond/Lagoon Liners please see our Secure Online Order Form

ORDER FORMS

SECURE ONLINE ORDER FORM PRINTABLE ORDER FORM




POND LINER CALCULATOR

Return to Table of Products Index
