PERCOL CARTRIDGES

Fast, Simple, Concrete Repairs
Repairs Look Great, No Mess!

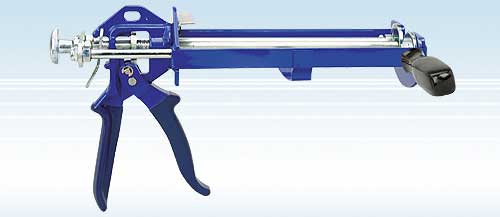

Hand Operated Dual Cartridge Gun

Uses 3/8" case hardened rods and cam. All three rods push the washers for added ease of dispensing product. Supplied with side handle for added stability and can be used on either side.



Concrete Welder Cartridges

Sealing cracks is simple with Asphalt Welder, Alligator Glue, or Elastic Cement AC for asphalt repairs, or Concrete Welder, Dopey Soup, or Elastic Cement for concrete repairs in dual cartridges.

Make sure the crack is clean and free of moisture. If there is a lot of water, use a blow dryer or torch to make certain the crack is dry. Open cartridge and squeeze directly into the crack. Use a scraper or straight-edge to smooth the material out. Wipe up any excess material and allow to dry for 30 minutes. Now the crack is filled and ready for use.

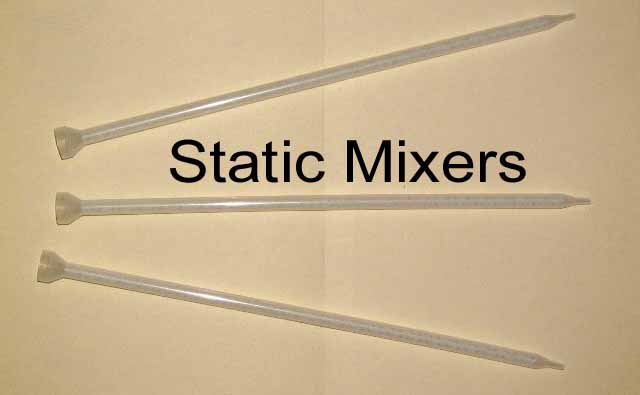

Static Mixers are included with the Cartridges



Concrete Welder and Asphalt Welder are low viscosity, penetrating polymers combined with high strength silica fillers to create a simple-to-use repair kit. Repairs cracks, divots, rutting and spalling.  One bottle contains polymers, pigments and silica fillers.  Another bottle contains the catalyst. A spout is attached for combining, mixing and easy pouring.  Neat repairs (without mess) are easily achieved.  Repairs are ready for traffic within 30 minutes at 75 degrees Fahrenheit. Click here for instruction sheet.

Concrete Welder Machine Dispensed Version: PERCOL Concrete WelderTM

USES

Concrete Welder Cartridges fill cracks and divots in concrete pavements, bridge decks, and concrete floors.  It seals concrete to stop freeze thaw spalling and chemical attack.  PERCOL Concrete Welder repairs are fast.  Traffic can resume within 30 minutes.

Bonds without Primer: No priming is required for bonding to concrete, asphalt, steel, or wood.

Seals and Protects: Waterproofs, protects from freeze/thaw spalling.  Smoothes rough surfaces. Restores traction surfaces

Fast Repairs and Cure: Pourable for 5 minutes.  Solidifies in less than 10 minutes.  Ready for traffic in 30 minutes.

Repairs Year Round: Successful repairs can be completed in cold or hot weather.

Safe to Use, Low Odor: No flammable components. There are no peroxides or heavy metals.  There is little odor on application, and it is safe to use.  See product safety data for more information.

Chemically Resistant: Resists dilute acids and alkalis; and deicing salts, gasoline, diesel, fuel, and lubricating oils will not penetrate treated areas.

MIXING INSTRUCTIONS

1. Cut Tip of Static Mixing Tubes to Desired Opening.  The size of your repair will determine the opening size of your spout.

2. Repair Concrete.  Squeeze contents of cartridges into cracks and damaged concrete flush to grade.  For a concrete like surface, sprinkle with fine sand.  For high traction surface use larger sand.

4. Cure.  Allow about 30 minutes for cure at 75 degrees Fahrenheit.

Working Time is about 8 Minutes

Typical Cured Properties


Specific Gravity, ASTM D-792
1.8
Tensile Strength, psi, ASTM D-412
6500
Elongation at Break (%), ASTM D-412
<10
Tear Strength, ASTM D-624
450
Compression Strength, psi, ASTM C-39
7250
Bond Strength to PCC, psi
350

KEEP OUT OF THE REACH OF CHILDREN

Concrete Welder Machine Dispensed Version: PERCOL Concrete WelderTM



ASPHALT & CONCRETE REPAIR APPLICATIONS (PDF's)

Armored Nosing and Joint Repair Control Joints Deep Spall Repair
Full Depth Crack Repair Header and Joint Replacement Isolation Joint At Retaining Wall
Joint Repair Using Existing Headers Protective Surface Overlay Slip Joint Surface Repair
  Traffic Sensor Loop



IMPORTANT NOTICE:
Recommendations for product use are based on tests believed to be reliable.  Field conditions vary widely.  For this reason, the user must determine product suitability for the particular use and specific method(s) of application.  THE FOLLOWING IS MADE IN LIEU OF ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.  Sellers and manufacturers only obligation shall be to replace such quantity of the product proved to be defective.  NEITHER SELLER NOR MANUFACTURER SHALL BE LIABLE FOR LOSS OR DAMAGE, DIRECT, INCIDENTAL OR CONSEQUENTIAL, REGARDLESS OF THE LEGAL THEORY ASSERTED, INCLUDING NEGLIGENCE AND/OR STRICT LIABILITY.  The foregoing may be altered only by an agreement signed by officers of seller and manufacturer.  WARRANTY:  The recommendation for the use of our products are based on tests believed to be reliable.  However, we do not guarantee the results to be obtained by others under different conditions.  NOW WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE IS MADE.  Nothing in this data sheet is intended as a recommendation to use our products so as to infringe on any patent.
